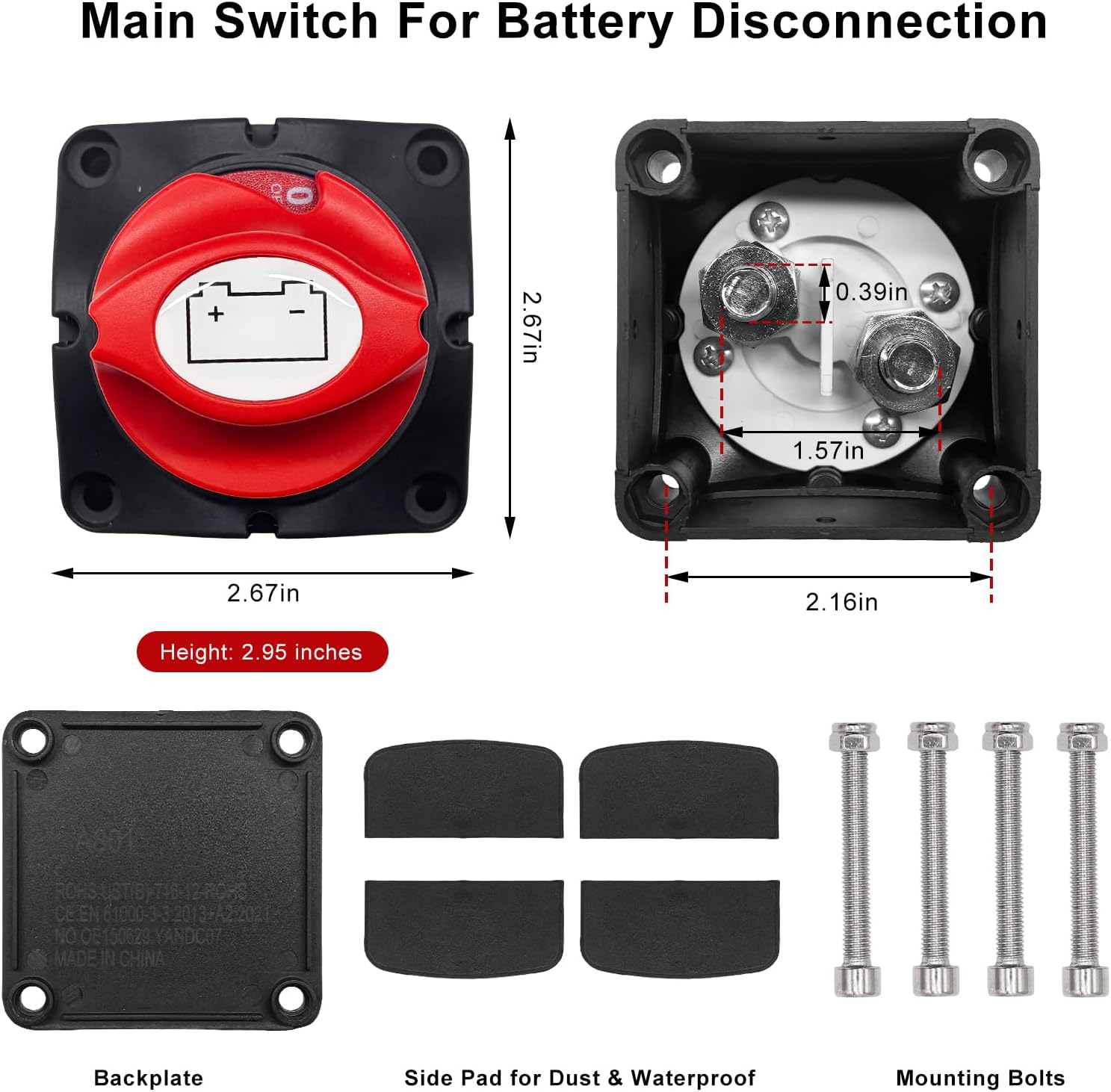

12V-48V 300A Battery Disconnect Switch, Waterproof Cut/Shut Off Switches Disconnect Isolator, Heavy Duty Battery Power Cut Master Switch for Truck Trailer RV Marine Boat (Style 1)
Product details
| Management number | 237598987 | Release Date | 2026/07/10 | List Price | US$3.32 | Model Number | 237598987 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Material: ABS, Silver-Plated CopperQuantity: 1 PCSStyle: Style 1/ Style 2Color: Black & RedWeight: 1.1 lbRated Voltage: 12-24 VRated Current: 275 AOverall Size: 2.7×2.7×2.9 inchesStud Diameter: 0.39 inchesPackage Includes: 1 Battery Switch, 1 Backplate, 4 Bolts, 4 Nuts, 4 Side PadsFeature: Dustproof, Practical, DurableFit Type: Universal FitWhy do you need this battery disconnect switch?-This product features flame-retardant properties, making it suitable for various demanding onboard environments.-The battery cut-off switch is easy to install. Just align the switch with the reserved hole on the installation panel and then fix it with the included fasteners.-This switch safely disconnects the battery from vehicle or marine systems, effectively guarding against safety hazards such as electrical leakage, short circuits, or accidental start-ups.
- Primary Function: This battery switch features reliable power control and can quickly disconnect the battery from the vehicle's electrical system. It can achieve immediate power isolation during routine maintenance or in case of sudden emergencies, significantly enhancing system security
- Reliable Quality: The housing of this battery switch is crafted from premium ABS, offering excellent corrosion and water resistance for extended service time. The included accessories feature silver-plated copper construction, providing superior impact resistance and making them less prone to bending
- Intuitive Design: This battery disconnection switch features a striking red rotating handle design, making it easy to hold and operate. It is equipped with a clear indication design, showing a green "On" or red "Off" icon, enabling users to quickly determine the switch status
- Electrical Performance: This battery switch adopts a two-position ("ON/OFF") design for reliably connecting or disconnecting circuits. In a 12V DC system, it can continuously carry a current of 275A. It can withstand 455A under short-term working conditions. The instantaneous peak can reach 1250A
- Wide Application: Rated at 12-24 V and 275 A, this battery isolate switch meets the power demands of high-wattage equipment. It is widely applicable for RVs, trucks, trailers, boats, and marine applications, serving as an ideal main power isolation solution for electrical systems
| ASIN | B0GS1F5NN1 |
|---|---|
| Color | Style 1 |
| Model | 12V-48V 300A Battery Disconnect Switch |
| Terminal | Screw |
| Brand Name | Pxobiug |
| Unit Count | 1.0 Count |
| Part Number | Pxobiug-20091BD |
| Switch Type | Rotary |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | Pxobiug |
| Material Type | ABS, Silver-Plated Copper |
| Mounting Type | Through Hole Mount |
| Connector Type | Plug In |
| Current Rating | 275 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 2.7 x 2.7 x 2.9 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 12 Volts |
| Included Components | 1 Battery Switch, 1 Backplate, 4 Bolts, 4 Nuts, 4 Side Pads |
| Number of Positions | 2 |
| Warranty Description | 0.2 |
| Upper Temperature Rating | 80 Degrees Celsius |
| International Protection Rating | IP66 |
